Technical Parameters
| Item | Unit | Parameter |
| Max. pressing force | KN | 16000 |
| Ejecting force | KN | 210 |
| Max. beam stroke | mm | 140 |
| Min. distance between beam and press table | mm | 460 |
| Max. distance between beam and press table | mm | 600 |
| Distance between left and right columns | mm | 1700 |
| Reserved width of column | mm | 680 |
| Max. filler thickness | mm | 60 |
| Idle cycle index | Min-1 | 25 |
| Pressing frequency per cycle | times | 2~3 |
| Main motor capacity | KW | 75 |
| Oil volume | L | 840 |
| Air consumption | m³/h | 0.25 |
| Cooling water volume | m³/h | 18 |
| Weight of main components | t | 52 |

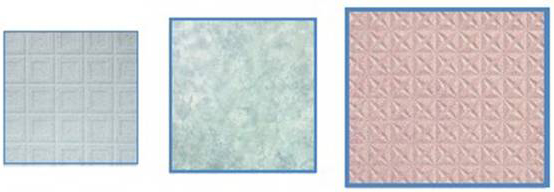

JIC1600 is applicable for 200X300, 250X330mm internal tiles and 140X280, 200X400mm external tiles.
